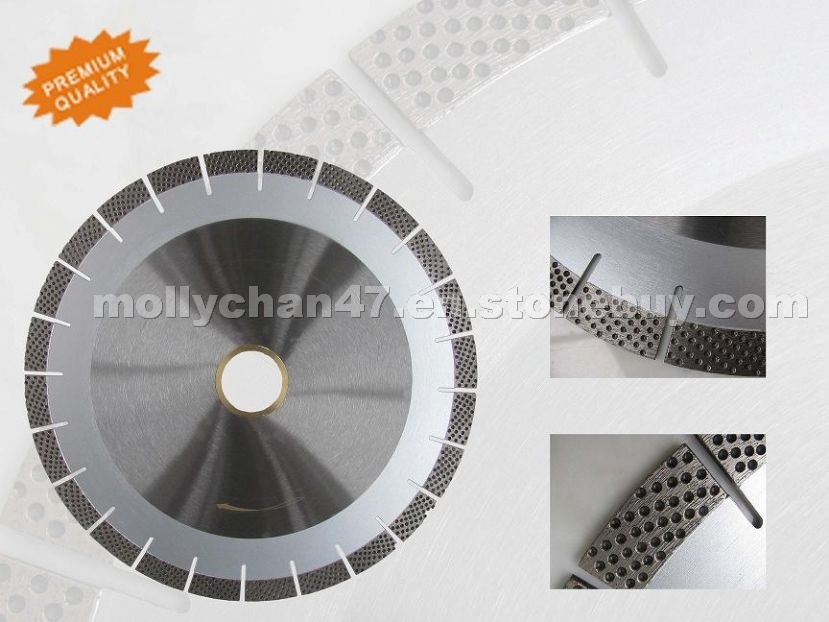

Holes Diamond Blade

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1473041

• Place of Origin:

  China
• Holes Diamond Blade
  Item No.:9001E
  Features:
  For cutting granite, engineered stone and other masonry,etc.
  2.Scientific and well designed pattern of holes for each segment, which disperses heat and removes the dust easier.
  3.Silent or Non-silent core also are available
  Holes Diamond Blade
  Item No.:9001E
  Description:
  Fast cutting:Holes blade can cut hard granite 6.5 meters/minute.
  No chipping on both sides stone. Holes blade is always keeping diamonds on both sides of segments which is fine enough to provide fast and chip-free cutting.
  Holes blade has 0.5 2.5 DB lower than traditional blades.
  Consistency performance throughout the cutting process.
  Durability: Perfect balance between fast cutting and long lifespan.

  Item NoDia.Segment thickness (mm)Height (mm)Hole (mm)Segment No.
  9001E01212"(300mm)2.82050/6021
  9001E01414"(350mm)3.22050/6024
  9001E01616"(400mm)3.52050/6028
  9001E01818"(450mm)4.02050/6032
  9001E02020"(500mm)4.22050/6036
  9001E02222"(550mm)4.62050/6042
  9001E02424"(600mm)4.62050/60/8042
  9001E02828"(700mm)5.02050/60/8050
  9001E03030"(750mm)5.22050/60/8054
  9001E03232"(800mm)5.52050/60/80/10057
